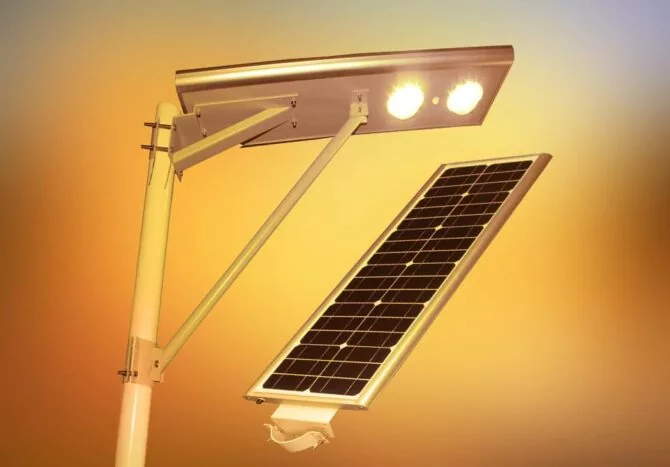

Integrated AIO Solar Street Light

  • Innovative design: Integrated SSL “all in one” concept: solar module, battery, LED luminary, charge controller with lighting management program are integrated in one product.
  • Ideal use: Our 6W, 12W and 15W models are ideal to light all your garden / backyard. Higher capacity models are powerful to replace existing main road street lights.
  • Horizontal and Modular installation: Integrated SSL can be installed anywhere without constrain of south orientation. One integrated SSL will give about 500 (6W) lumens to 4000( 40W).
  • Plug & Play: No need of trenching, cabling or assembling on the field. iSSL® can be installed and programmed by IR (DOD, dimming and timing) in minutes with no need of technical expertise.
  • Technology: Integrated SSL includes a system for improved thermal management that enhances the battery and LED module performances and lifespan.
  • No need for wiring. Turns on automatically when it starts to get dark in the evening.
  • Easy to install.
  • A Solar Home is a Smarter Home

Product Specification

30w all in one solar street light
Solar panel Max power: 18V/60W  (high efficiency imported silicon solar cell) Mounting height(m): 6-7m
Solar panel Life time 25 years Space between light(m): 20-25m
Battery Type lithium battery(Life time 5 years) Lamps material of main: aluminium alloy
LED Max power 12V 30W Certificate: ISO/CE / ROHS / IP65
Led chip brand Bridgelux from USA  with high brightness Warranty period: 2years
Lumen (LM) 3600-3900lm Unit size: 1150*330*140mm
LED Life time 50000hours  N.W:  18.5 kg
Lighting Viewing Angle 120°
Charge time(by sun): 6-7hours (ith enough strong shine)
Discharge time more than 20 hours (saving mode)
Working TEMP( ℃ )  -20~+60
