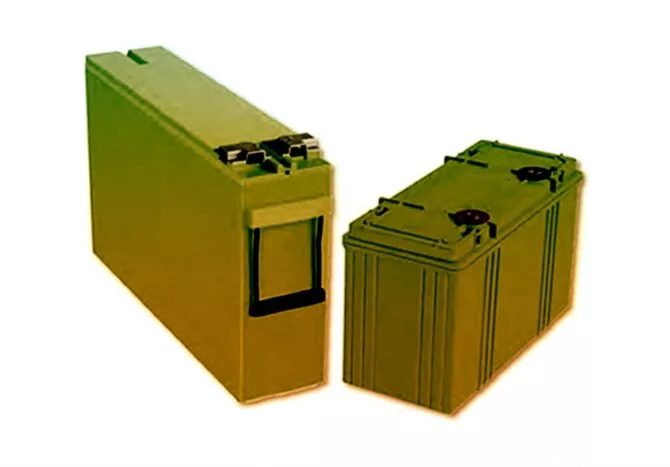

    Batt

    U-Power

    SERIE UP-TFS & RS

    Características
    Tecnología AGM.
    Diseño de vida extremadamente alto en uso cíclico.
    Clasificación EUROBAT: 12 + Larga Vida.
    Baterías VRLA, sin mantenimiento, 99% eficiencia en la recombinación interna de gases.
    Fácil instalación y comprobación.
    Carcasa de ABS V0, retardante de llama.
    Batería 100% reciclable.

    OPzV CELLS

    Vida útil
    Más de 15 años a 20°C.

    IIEC 896-1 ciclos
    1200 ciclos.

    Auto-descarga
    Aprox. 2% al mes a 20°C.

    Temperatura de trabajo
    -20°C a 55°C, recomendado de 10°C a 30°C.

    Conformes a
    IIEC 896-1, IEC 60896-21 y EN 61427.





    Modelo Capacity Ah 1.80
    UPC 20ºC
    Longitud
    (mm/inch)
    Anchura
    (mm/inch)
    Altura
    (mm/inch)
    Peso
    Húmedo
    (kg)
    Nº.
    de Polos
    C10 C100
    0004 OPzV 200 204 243 103 / 4.06 206 / 8.11 371 / 14.61 19 2
    0105 OPzV 250 255 303 124 / 4.88 206 / 8.11 371 / 14.61 23 2
    0116 OPzV 300 306 364 145 / 5.71 206 / 8.11 371 / 14.61 28 2
    0125 OPzV 350 357 425 124 / 4.88 206 / 8.11 488 / 19.21 31 2
    0136 OPzV 420 429 511 145 / 5.71 206 / 8.11 488 / 19.21 36 2
    0147 OPzV 490 500 595 166 / 6.54 206 / 8.11 488 / 19.21 41 2
    0156 OPzV 600 612 728 145 / 5.71 191 / 7.52 660 / 25.98 49 2
    0168 OPzV 800 816 971 210 / 8.27 233 / 9.17 661 / 26.02 65 4
    01710 OPzV 1000 1.020 1.214 210 / 8.27 275 / 10.83 663 / 26.10 80 4
    01812 OPzV 1200 1.251 1.489 210 / 8.27 275 / 10.83 662 / 26.06 93 4

    LITHIUM BIG STORAGE – Specifications

    OPzV Cells - Cycles vs DOD diagram
    Indicative Installation
    UP-TF100-12
    UP-GS145
    OPzV Float Voltage vs Temperature
    10-OPzV-1000
    OPzV Construction plates
    UP-ST300-2
    UP-ST2500-2
    OPzV Storage Time vs Temp diagram
    UP-TFS250-12
    8 OPzV 800
    OPzV Charging time vs DOD
    OPzV Construction poles
    OPzV Open-Circuit Voltage VS Depth of Discharge
    OPzV Expected Service Life vs Temp diagram
    OPzV Charging curves
    GS Type test Cycles
    OPzV Construction
    GC2TOP UPOWER 255C100t
    UP-GC12-TOP (4)260A 12V
    UP-GC12-TOP (4)-12v 250A
    GC6-16RE TOP UPOWER 600C120
